2026 Mitsubishi Outlander PHEV Battery & Range Guide
The 2026 Mitsubishi Outlander PHEV delivers 45 miles of all-electric range from a new 22.7 kWh battery, up from 38 miles in 2025. That 7-mile gain comes from a 13% larger battery pack paired with a new refrigerant-based thermal management system. This page breaks down how the battery works, which trims get which charging options, and what it means day to day, with inventory available now at Arrow Mitsubishi in Abilene.
Electric Range and Battery: What Changed for 2026
The headline number is 45 miles of EPA-estimated all-electric range. That figure is a direct result of two engineering changes that work together: a larger battery and a better cooling system.
The 22.7 kWh lithium-ion pack replaces the 20 kWh unit from the 2025 model. While the capacity increase is 13%, Mitsubishi engineers report that power output from the battery rose by 60%. That gap between capacity growth and power output growth exists because the new thermal management system allows the battery to deliver more of what it stores without heat-related throttling.
The total driving range (electric and gasoline combined) remains 420 miles. To fit the larger pack without shrinking the cabin or cargo area, Mitsubishi reduced the fuel tank from its previous size to 14.0 gallons. The battery itself mounts under the floor between the axles, so none of the 7-passenger seating or cargo space is compromised.
Combined fuel economy is rated at 73 MPGe on electricity plus gasoline, and 27 MPG on gasoline only. See EPA fuel economy ratings for the 2026 Outlander PHEV.
How the Battery and EV System Work
The Outlander PHEV uses two AC synchronous permanent-magnet electric motors: a front motor rated at 85 kW and a rear motor rated at 100 kW. The rear axle is driven entirely electrically, with no mechanical connection between the front and rear wheels. This setup is what makes the Super All-Wheel Control (S-AWC) system so responsive: the rear motor can distribute torque precisely and without delay.

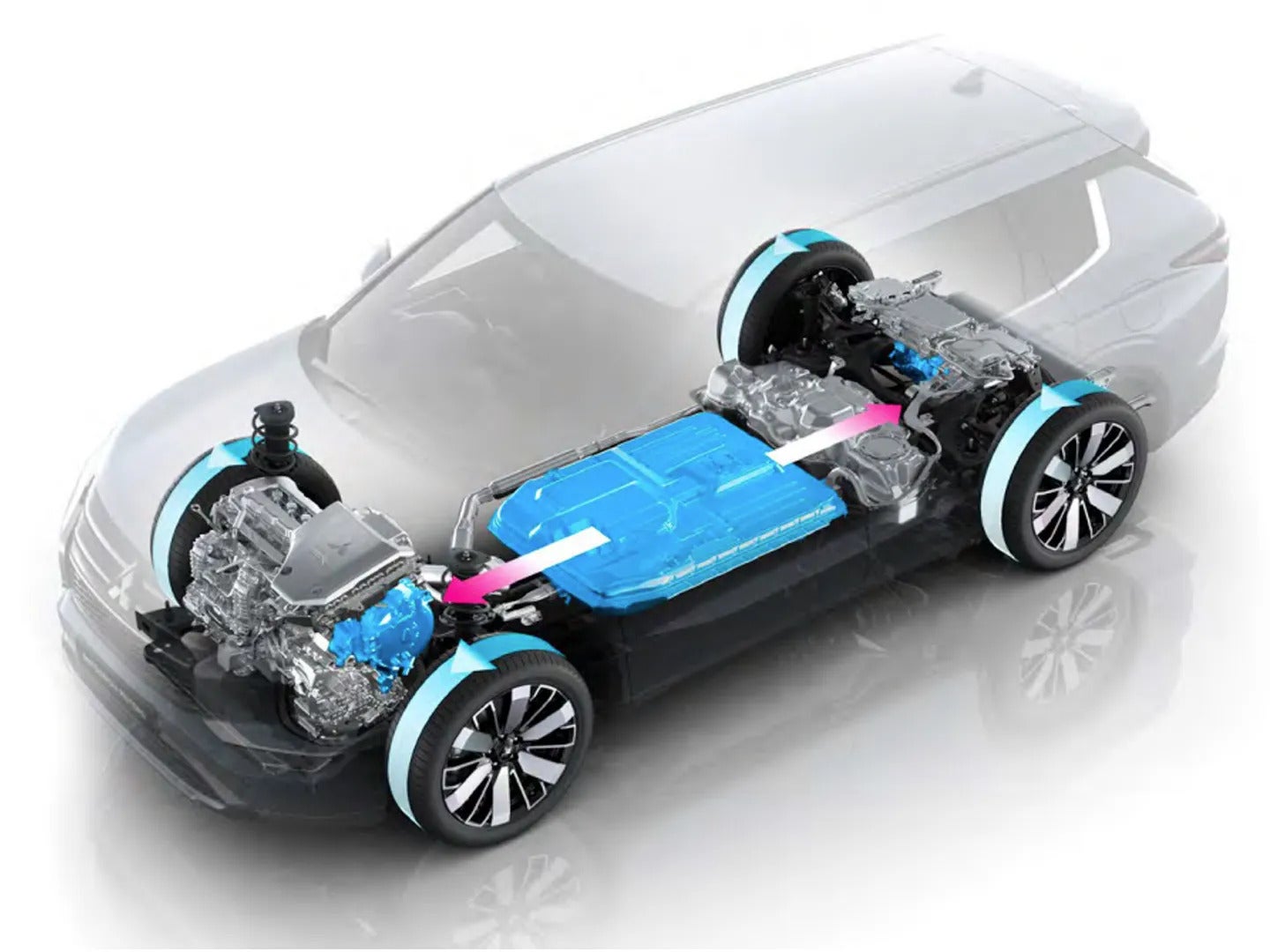

The 355-volt battery pack sits below the floor and is cooled by a two-row refrigerant system. The lower cooling array draws heat away from the pack and also prevents radiant heat from entering the cabin. This keeps the battery in its optimal operating temperature range across more driving conditions, which is why the 2026 model can use EV mode in scenarios where the 2025 model would have switched to the gasoline engine.
The vehicle can operate as a series hybrid (the gasoline engine generates electricity to power the motors) or as a parallel hybrid (the gasoline engine drives the wheels directly, assisted by the motors). Drivers control this behavior through four PHEV-specific drive modes:
- EV Mode: Runs on battery power only. For 2026, steering-wheel paddles can be used to adjust regenerative braking intensity without forcing the system out of EV Mode. When the paddles ramp up regeneration, the engine starts briefly to harvest deceleration energy, then stops again.
- Battery Charge Mode: Uses the gasoline engine as a generator to charge the battery up to approximately 80% state of charge, whether moving or stationary.
- Battery Save Mode: Holds the current battery state of charge and relies on the gasoline engine for primary drive, preserving EV range for later use, such as entering a city center.
- EV Priority Mode: New for 2026, this mode extends EV operation into Adaptive Cruise Control and MI-PILOT semi-autonomous driving scenarios, a capability the smaller 2025 battery could not support.
Innovative Pedal mode allows near single-pedal driving, similar to a battery-electric vehicle. It can be activated or deactivated via a center console switch. The brake pedal is still required for full stops or hard deceleration.
Charging Options Across the Trims
The 22.7 kWh battery supports three levels of external charging. Here is how each works and which trims support which method:
| Charging Level | Power Source & Plug | Estimated Charging Time | Trim Availability |
|---|---|---|---|
| Level 1 | 120V / 12A Household Outlet | ~16.5 Hours (Fully Depleted) | Standard on All Trims (Cable Included) |
| Level 2 | 240V / 15A EVSE (J-1772) | ~6.5 Hours (Fully Depleted) | Supported on All Trims |
| Level 3 DC Fast Charge | CHAdeMO Quick Charger | ~29 Minutes (0% to 80%) | Standard on SEL and Black Edition Trims |
Charging status is shown by an LED indicator near the charging port. White indicates the lid is open, green means the connector is seated, and flashing green means charging is in progress. Charging start time can be scheduled through the Mitsubishi Connect app or the 12.3-inch navigation display. The climate system can pre-condition the cabin while still connected to the grid, so the battery is not drawn upon for heating or cooling before the drive begins.
Every trim, ES through Black Edition, shares the same 22.7 kWh battery, the same 45-mile EV range, and the same 420-mile total range. The CHAdeMO fast-charge port is the one charging-related differentiator across the lineup. Find public charging spots on the CHAdeMO fast charging network locator.
Real-World Benefit for Owners in Abilene
Forty-five miles of EV range covers the large majority of daily driving for most households. According to the U.S. Department of Transportation, the average American drives roughly 37 miles per day. See U.S. Department of Transportation average vehicle miles traveled data. That means most Abilene commuters and errand runs can complete a typical day without burning a drop of gasoline, provided the vehicle is plugged in at home overnight using a Level 2 charger.
When trips do exceed the 45-mile EV range, the gasoline engine picks up seamlessly. The 420-mile total range means a driver heading from Abilene to Dallas or San Antonio does not need to plan a charging stop. The vehicle functions as a conventional hybrid once the battery depletes, returning 27 MPG on gasoline alone.
The battery pre-conditioning feature adds a practical cold-weather and hot-weather benefit that pure hybrids do not offer. Before leaving for work, a driver can set the climate system to cool the cabin using grid power while the vehicle charges. In West Texas summer heat, arriving at a pre-cooled Outlander PHEV without spending battery range on initial cooling is a real day-to-day convenience.
Ventilated front seats (standard on SEL) and a 1,500-watt AC outlet in the trunk (SEL) extend the vehicle's utility further. The rear seat 1,500-watt outlet on SEL also means the battery can serve as a power source at a campsite or job site, adding utility that goes well beyond simple commuting.
The 5-year Safeguard and 1-year Remote Services trial through Mitsubishi Connect lets owners remotely start a charge, set a charge schedule, and monitor battery state of charge from a smartphone. The main drive battery carries the same 10-year / 100,000-mile warranty as the powertrain, a coverage level that removes long-term ownership uncertainty.
How the 2026 Outlander PHEV Battery Compares to the Segment
The Outlander PHEV's 45-mile EV range sits above the segment average for plug-in hybrid SUVs with three rows of seating. Most three-row PHEVs in this class offer EV ranges between 25 and 38 miles. The 2026 Outlander PHEV's 22.7 kWh battery is also larger than what most competitors deploy in this body style.
The 297 hp combined system output, produced by the 2.4L engine and twin motors together, is competitive at the top of this segment. The rear motor's 100 kW output is handled exclusively electrically, which is the mechanical basis for S-AWC's precise torque split and the system's ability to manage seven drive modes, including Gravel, Snow, and Mud, without a traditional center differential.
The 10-year / 100,000-mile warranty on the main drive battery is a direct differentiator. Most competitors offer 8-year / 100,000-mile coverage on battery components. That two-year gap in basic coverage is a meaningful ownership consideration for buyers planning to keep the vehicle long-term.
See the 2026 Outlander PHEV at Arrow Mitsubishi in Abilene
The 2026 Outlander PHEV is in stock now at Arrow Mitsubishi in Abilene. Every trim comes with 45 miles of EV range, a 22.7 kWh battery, S-AWC, 7-passenger seating, and the 10-year / 100,000-mile powertrain and battery warranty. If you want to see how the Level 2 charging setup works in person, or you want to test EV Mode on a local drive, the team at Arrow Mitsubishi can walk you through every detail.
Frequently Asked Questions
How many miles of electric range does the 2026 Mitsubishi Outlander PHEV get?
The 2026 Outlander PHEV has an EPA-estimated total range of 45 miles on all-electric power. That is up from 38 miles on the 2025 model, thanks to the larger 22.7 kWh battery and a new refrigerant-based cooling system.
What size battery is in the 2026 Outlander PHEV?
The 2026 Outlander PHEV uses a 22.7 kWh lithium-ion battery pack running at 355 volts. It is mounted under the floor between the axles and does not reduce interior space or seating capacity.
How long does it take to charge the 2026 Outlander PHEV?
On a standard 120V outlet, a full charge takes approximately 16.5 hours. On a 240V Level 2 charger, charge time is approximately 6.5 hours. The SEL and Black Edition trims support DC fast charging via CHAdeMO, which brings the battery to approximately 80% in around 29 minutes.
Does every trim get the same EV range?
Yes. All trims (ES, SE, SEL, and Black Edition) share the same 22.7 kWh battery and the same 45-mile EV range. The only charging-related difference across trims is that the CHAdeMO DC fast-charge port comes standard on the SEL and Black Edition configurations.
What is the total driving range of the 2026 Outlander PHEV?
Total driving range (EV and gasoline combined) is 420 miles. The vehicle carries 14.0 gallons of gasoline and returns 27 MPG on gasoline only once the battery depletes.
Does the 2026 Outlander PHEV have one-pedal driving?
The Outlander PHEV offers Innovative Pedal mode, which enables near single-pedal operation similar to a battery-electric vehicle. It is activated by a switch on the center console. The brake pedal is still required for full stops or aggressive deceleration.
Is the battery warrantied on the 2026 Outlander PHEV?
Yes. The main drive battery is covered by a 10-year / 100,000-mile warranty, the same term as the powertrain warranty. PHEV components also carry 10-year / 100,000-mile coverage.
Can I pre-condition the cabin while the 2026 Outlander PHEV is charging?
Yes. The climate system can be run while the vehicle is connected to the grid, so the cabin reaches a comfortable temperature before departure without drawing from the battery. Charge scheduling and climate pre-conditioning are both controllable through the Mitsubishi Connect app.
